Case for ATEM Mini Extreme
Case for ATEM Mini ExtremeThe all-in-one mobile streaming setup case for ATEM Mini Extreme video mixers by Blackmagic Design
Three in one – one handle and everything is there. ATEM Mini Extreme Video Mixer1, 15″ – FullHD monitor, power supply – and all this handy, compact and transportably stowed.
All accessories for your stream
- Quick to put into operation – set it down, unfold it and switch it on. You can save yourself the wiring of the monitor with data and power connection.
- Put an end to the tangle of cables – an integrated power supply supplies all components.
- Convenient to use - all cable connections are easily accessible on two sides of the ATEM Mini case led to the outside.
- Convenient, on-off switch and fan for safe operation even in hot weather.
- Safe and stable - all components are protected in the hard shell case and installed safely for transport.
- Your existing ATEM Mini Extreme continue using? That's why the case is also available for self-installation! 2
Configure the case for the ATEM Mini Extreme with all the features you need for your stream. Available in three versions: Basic, Professional and SDI.
Which case type are you?
Basic
the versatile
Everything you need is included and its options can be tailored to your needs. Standard with 15.6-inch Full HD monitor and second HDMI out, e.g. for connecting a projector. Includes headphone jack to listen to your stream and optional features such as USB charging socket or battery port. And of course in high BSS quality.
Professional
the complete
Able to cope with frequent loads – the professional leaves nothing to be desired. 15.6-inch Full HD monitor, high-quality NEUTRIK sockets and the thermostat-controlled, whisper-quiet fan make it a workstation. With two or four optionally integrated SDI converters, your professional equipment can be connected directly . Other features include the USB charging socket and the battery connection, which makes you independent of the power supply – and all of this is compactly integrated in the stable case.
Professional
for ATEM SDI Extreme
The new ATEM Extreme SDI with BNC connectors for your professional equipment – and we have the case. With 15.6-inch monitor, NEUTRIK SDI jacks and thermostat-controlled, whisper-quiet fan. And if you do need one or more HDMI inputs or outputs – with the optionally available converter, these are integrated directly into the case.
Other features include the USB charging socket and the battery connection, which makes you independent of the mains – more professional is hardly possible!
Extreme
Basic Case
versatile through and through
-
Expandable livestream setup with ergonomically adjustable monitor
-
Headphone jack and HDMI-Out included
-
Individually configurable with optional features
The 15" inch monitor can be folded off the lid and thus ergonomically adjusted to the optimal viewing angle.
The headphone output is already integrated as standard in the Basic Case and optionally even available in 6.35 mm version. In addition, the HDMI-Out signal of the ATEM not only feeds the monitor but is available on the back of the case as an output.
With optional features such as the 3/8-inch threaded insert, the USB charging port, as well as the battery connection, the case can be upgraded to suit your requirements.
Extreme
Professional Case
high quality and complete
-
High-quality components for a long service life
-
Whisper-quiet operation thanks to PWM thermostat controlled fan
-
Optional, professional features for your livestream full equipment
Components from well-known manufacturers such as sockets from Neutrik or cables from Sommer ensure a long service life even with frequent use.
The built-in fan generates a barely perceptible running noise due to its specially shaped fan blades. In addition, the speed control is adapted to the case's internal temperature.
With optional features such as the USB charging port, the integrated SDI converters or the battery connection, the case can be configured exactly to suit your requirements.
Extreme
SDI Case
more Pro is not possible
-
With HDMI-Out for the monitor path
-
Whisper-quiet operation thanks to PWM thermostat controlled fan
-
Optional, professional features for your livestream full equipment
From the four SDI outputs of the ATEM Extreme, the integrated monitor is powered by output 1. This monitor signal is also routed to the outside as an HDMI output, so that an external control monitor can be connected to it. Optionally available as SDI output.
The built-in fan generates a barely perceptible running noise due to its specially shaped fan blades. In addition, the speed control is adapted to the case's internal temperature.
With optional features such as the USB charging port, the integrated SDI converters or the battery connection, the case can be configured exactly to suit your requirements.
Click the buttons and get all the information about your case
The versatile one - configurable for your requirements
The BSS Basic Case for the ATEM Mini Extreme can be configured in many ways and can therefore be optimally adapted to your own streaming needs. It already has real features on board in its basic configuration. Headphone output, optionally also in 6.35mm jack version and the second “monitor out” output with which you can also duplicate your monitor signal on a large screen or beamer.
Our features for PROs
With the BSS Case Professional for the ATEM Mini Extreme, nothing stands in the way of your live stream with professional equipment. The high-quality components of the company Neutriks ensure a long service life and with the optional SDI connection you save the cabling with external converters. In addition, the case can be upgraded to a streaming workstation with additional features such as up to four SDI converters, a USB charging socket and the specially developed battery connection with UPS function. So that you can open up completely new streaming possibilities.
Our features for SDI
With the BSS Case SDI for the ATEM Extreme SDI, nothing stands in the way of your livestream with the professional equipment. The high-quality components from Neutrik ensure a long service life and with optional HDMI connections for consumer products you save the cabling with external converters. In addition, the case can be upgraded to a streaming workstation with additional features such as USB charging socket and the specially developed battery connection with UPS function. So that you can open up completely new streaming possibilities.
15-inch full HD monitor 3
4
. These are easily accessible on the right side of the monitor.
15.6-Full HD Monitor 3
SDI-Out included
Fatigue-free view thanks to the ergonomically adjustable screen
Small features make the difference
Magnetic holders fix the screen securely in the end position. If the lid is accidentally closed with the monitor folded out, there are extra soft impact surfaces for cushioning.
Magnetic holders fix the screen securely in the end position. If the lid is accidentally closed with the monitor folded out, there are extra soft impact surfaces for cushioning.

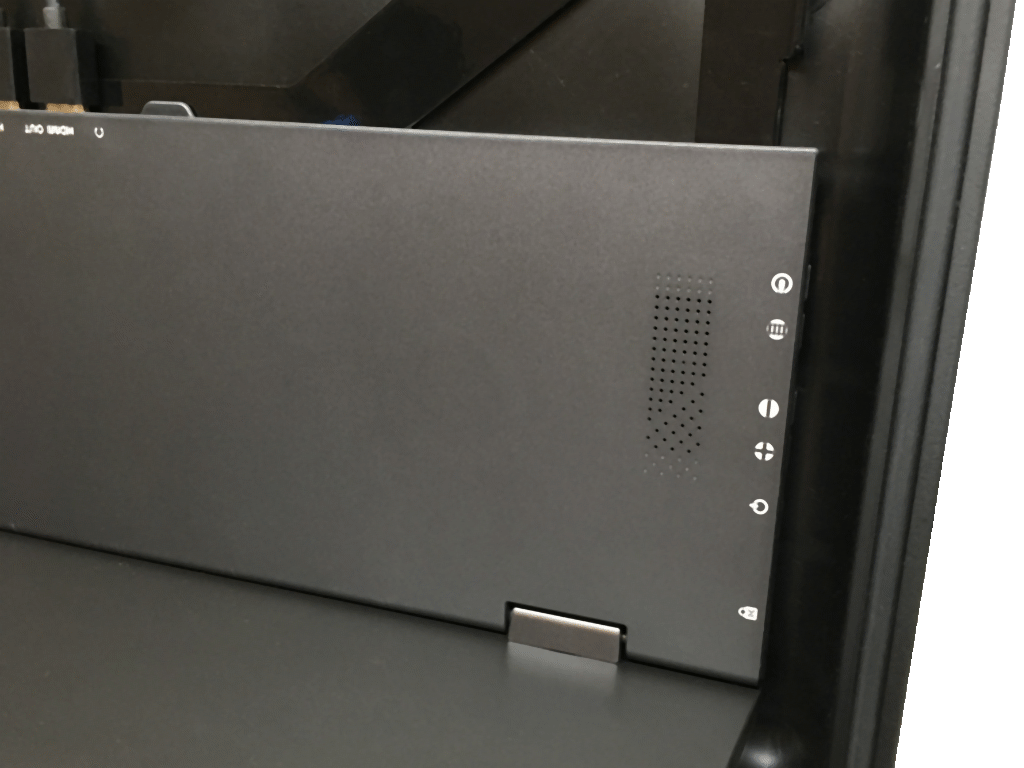

The controls and adjustment elements for adjusting the monitor exactly to your viewing habits are located on the right side of the housing. These are easily accessible because the monitor can be folded down wide.
The controls and adjustment elements for adjusting the monitor exactly to your viewing habits are located on the right side of the housing. These are easily accessible because the monitor can be folded down wide.
Sitemap
Especially when things have to be done quickly – all ATEM connections Mini are easily accessible with stable sockets on two sides of the case. And more extras too!

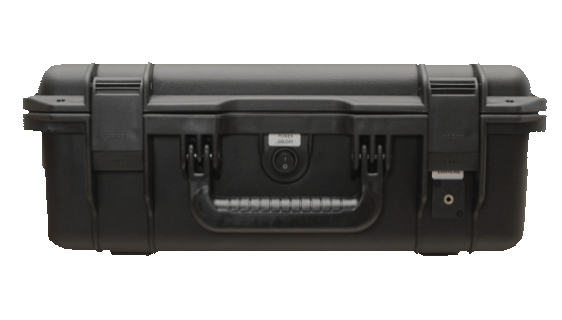

The central on/off switch is located on the front, as well as the ergonomically arranged and easily accessible 3.5 mm stereo connection for your headphones. Optionally also available in 6.35 mm version. With the stable handle you have the case safely under control.
All eight video inputs and outputs 5 as well as the two USB-C connections are equipped with stable sockets that are easily accessible on the back. And if one of them has reached its maximum number of mating cycles in daily use, then it can be easily replaced.
Simply plugged in directly – the internal power supply provides enough power to supply all integrated components and still has reserves for optional extensions 6 . You can use the two audio inputs to include unbalanced stereo line signals 7 directly in your broadcast, and the Ethernet port provides a secure connection to the internet for your streams via cable. Optionally, there is still space for the USB charging socket and the battery connection.
Even when it gets hot – with the integrated fan, the built-in components keep a “cool head”, which they thank you with a longer service life! And for everyone who likes it whisper-quiet – a thermostat regulates the speed of the professional case depending on the inside temperature of the case.
Page overview Case Extreme Professional
Especially when things have to be done quickly – all ATEM connections Mini Extreme are easily accessible with stable sockets on two sides of the case. And there is still enough space for even more extras and installations!
The central on/off switch is located on the front, as well as the ergonomically arranged and easily accessible 6.35 mm stereo connection for your headphones. With the stable handle you have the case safely under control.
All eight video inputs and outputs 5 as well as the two USB-C connections are equipped with stable sockets on the back and are easily accessible. And if one of them has reached its maximum number of mating cycles in daily use, then it can be easily replaced.
Simply plugged in directly – the internal power supply provides enough power to supply all integrated components and still has reserves for optional extensions 6. You can use unbalanced stereo line signals at the two audio inputs 7 directly into your broadcast and with the Ethernet connection, your Internet access for your streams is securely connected via cable. Optionally, there is still space for the USB charging socket and the battery connection.
Even when it gets hot – with the integrated fan, the built-in components keep a “cool head”, which they thank you with a longer service life! And for everyone who likes it as quiet as a whisper – a thermostat regulates the speed depending on the internal temperature of the housing.
Sitemap Case Extreme SDI
Especially when time is of the essence – all connections of the ATEM Mini Extreme SDI are easily accessible with sturdy sockets on three sides of the case. And there is still enough space for even more extras and installations!
On the front is the central on/off switch, as well as the ergonomically arranged and easily accessible 6.35 mm stereo connector for your headphones. With the stable handle you have the case safely under control.
All twelve SDI video inputs and outputs are easily accessible on the back with stable sockets. And if one of them has reached its maximum number of mating cycles in daily use, then it can be easily replaced.
Simply plugged in directly – the internal power supply provides enough power to power all integrated components and still has reserves for optional extensions
6
. You can use unbalanced stereo line signals at the two audio inputs 7 directly into your broadcast and with the Ethernet connection, your Internet access for your streams is securely connected via cable. The two USB-C ports complete the standard interfaces and optionally there is still space for the USB charging socket and the battery connection.
Even when it gets hot – with the integrated fan, the built-in components keep a “cool head”, which they thank you with a longer service life! And the integrated thermostat ensures whisper-quiet operation. This regulates the speed depending on the internal housing temperature.
Compact & robust
Brings its transport protection with the stable hard-shell case. A robust solution instead of lugging two containers for the components or a bulky flight case. The components are safely stowed away in the BSS case for the ATEM Mini Extreme, so nothing falls out and the case is always securely closed with the two retaining clips during transport. In addition, the size of just 430x380x154mm is optimally adapted to the ATEM Mini Extreme. Everything is included with enough space for extensions. With a total weight of approx. 7.5kg 8 , it remains extremely compact and transportable.
Suitable for your requirements - our optional features
6.35mm headphone jack - always all ears with your professional headset!
No more fiddly adapters when trying a 6.35 mm jack plug into a 3.5mm jack. With the optional 6.35 mm headphone connection, your professional headphones will find the right fit!
And it stays there even if there is a little more tension on the cable. Our socket securely locks the plug until you want to unplug it. In order to you can listen to your stream directly and thus ensure your transmission quality. Ergonomic and easily accessible on the front arranged. And the volume is easily adjusted using the monitor’s menu buttons.
Suitable for your requirements
Our optional features for your Professional Case Extreme
SDI included - the direct way for your professional equipment
Where streaming equipment is moved and set up frequently, it needs high-quality components to ensure a long service life. Therefore, sockets from Neutrik AG and audio cables from Sommer Cable/Cordial are also installed in the Professional Case Extreme for ATEM Mini Extreme. You can find more professional designs with the XLR connections and the Ethernet socket. In stable metal design and with locking mechanism. This means that your microphone and data signals are contacted without interruption.
The internal control always regulates the fan speed to match the ambient temperature, so this is hardly noticeable during operation.
Turn your ATEM Mini Extreme into a workstation
The BSS-Case Professional product line includes everything you need for the daily use of your streaming setup. The stable base becomes a workstation with high-quality sockets and cables from well-known suppliers.
The SDI option gives you access to the world of professional equipment. And all this is completely integrated in the compact dimensions of the case.
SDI connector in your case – integrated right away
Professional SDI – With this option for the professional case, everything is ready for your professional equipment with two or four 3G SDI connections. No more wiring external converters – with the SDI option you have a compact setup that leaves nothing to be desired for professional cameras and accessories.
Suitable for your requirementsOur optional features for your Case Extreme SDI
SDI through and through – the direct route for your professional equipment
Where streaming equipment is moved and set up frequently, it needs high-quality components to ensure a long service life. Therefore, sockets from Neutrik AG and audio cables from Sommer Cable/Cordial are also installed in the SDI Case Extreme for ATEM Extreme SDI. You can find more professional designs with the XLR connections and the Ethernet socket. In stable metal design and with locking mechanism. This means that your microphone and data signals are contacted without interruption.
The internal control always regulates the fan speed to match the ambient temperature, so this is hardly noticeable during operation.
Turn your ATEM Mini Extreme into a workstation
The BSS-Case SDI product line includes everything you need for the daily use of your streaming setup. The stable base becomes a workstation with high-quality sockets and cables from well-known suppliers.
The additional HDMI option gives you direct access to consumer products even without an external converter. And all this is completely integrated in the compact dimensions of the case.
HDMI connection integrated and individually adjustable
Two standard versions are available in the shop: with an HDMI output and 3x SDI-Out, whereby the internal monitor signal is duplicated for the connection of external displays, or all four outputs in SDI version. With optionally available, additional up to four 3G HDMI ports, everything is ready for connecting consumer products or a PC. No more cabling external converters – so you have a compact setup that leaves nothing to be desired for both connection worlds.
Inputs and outputs individually adjustable – exactly what you need for your stream
With Case SDI, there are a variety of possible combinations regarding inputs and outputs. In addition to the two standards, up to four additional 3G HDMI converters can be integrated into the case. This provides you with corresponding HDMI outputs without extra cabling.
The table below shows a typical selection of the given options for the individual configuration. In addition, other customer-specific combinations are also possible.
The vast majority of versions can be configured directly in our shop. All other or not listed variants can be requested via our inquiry form. We will send you an offer.
| Configuration | 8xSDI-IN |
6xSDI-IN / 2xHDMI-IN |
4xSDI-IN / 4xHDMI-IN |
1x HDMI 3xSDI-OUT |
4xSDI OUT |
2xSDI OUT/ 2xHDMI OUT |
|---|---|---|---|---|---|---|
| Standard1: 1x HDMI 3x SDI | ||||||
| Standard 2: Complete SDI | ||||||
| Configuration 1 | ||||||
| Configuration 3 | ||||||
| Configuration 4 | ||||||
| Configuration 5 | ||||||
| Configuration 6 |
Use of SDI converters
The use of SDI converters in the BSS case considerably expands its flexible application possibilities. This allows professional cameras and accessories with SDI output to be connected directly to an ATEM video switcher with HDMI inputs, or devices with HDMI output to the SDI series switcher. Our cases can therefore be expanded with appropriate options. Nevertheless, the following basics must be taken into account and applied when using the converters. You will find a compact summary of these in our download brochure “SDI Tech-Info”
USB charging socket for sufficient power
The plus in security for your live stream. With the optional USB-A charging socket, you can charge your accessories around the case such as smartphones, tablets during live operation or supply them with the appropriate power. And that with up to 2.3 A.
Available in Basic and Professional versions.
Photo shows Professional version
In coordination with the connected devices, the intelligent charging control ensures that the correct charging current is made available to them. You can find more information about charging via the USB socket in our blog entry ” Charging via USB socket “.

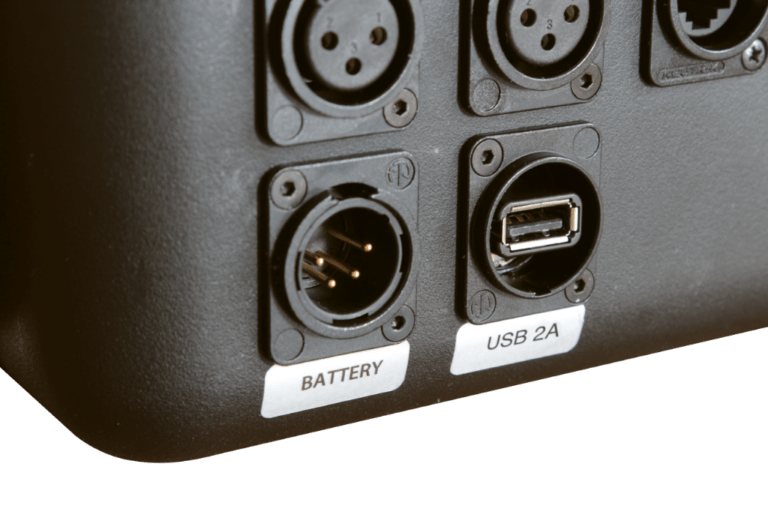

Battery connection with UPS function
What if you were as independent with your stream as you are with your camera? Our battery connector brings these freedoms to your transmission. This allows you to supply your case directly from the camera battery on standard 12 V-14.4 V battery connections, e.g. from V-mount batteries. Or you can use your on-board car socket or another 12 V source. This gives you completely new possibilities to carry out your stream completely detached from the mains.
Battery operation with fully automatic switching
If the mains voltage fails during standard operation, the control switches fully automatically and without interruption to battery operation. The guarantor for your stream without unfortunate failures.
A control LED on the front of the case signals battery operation. And all this without manual intervention. This allows you to fully concentrate on the show.
As soon as mains voltage is available again, the system switches back just as quickly and without interruption.
And for the safety of the components, the reverse polarity-protected battery connection is equipped with a 5 A overload protection.
Plug'n'play
Simply plug it in, the on-board electronics do the rest by themselves!
V. 2.0 - Safety built in
New in version 2.0 is the battery-side integrated surge protection. If too high a low voltage such as 24V is accidentally applied, then the fuse integrated in the case housing triggers and protects your components from damage. And just in case, a suitable replacement fuse is included in the case.
Uninterruptible power supply
The uninterruptible power supply (UPS) is IC controlled and ensures safe and automatic switching between mains and battery voltage. In order to all consumers are always supplied with the necessary energy .
In order to be able to cover the special requirements for operation and technology, the electronics were specially developed for the BSS case. Just so that your stream can succeed with or without a mains connection!
Matching cable connectors
You can easily and safely connect your V-Mount or Anton Bauer batteries to the professional 4-pin, lockable XLR socket using the optional XLR to D-Tap adapter cable.
The advantages at a glance
- Mains-independent operation of the case with all connected loads (in addition to the mains connection)
- Mains priority circuit with automatic and uninterrupted switchover to battery power in the event of a mains failure or undervoltage
- 12 V – 14.4 V reverse polarity protected battery connection
- Professional, lockable 4-pin XLR plug for power supply
- Control LED for battery operation
- Additional safety due to integrated surge protection when connecting too high voltages
- 5 A fuse on the battery supply side
- Spare fuse holder integrated in the case
- Case power supply 7.0A
- Optional connection cables available
Scope of delivery
- Integrated control electronics with 4-pin XLR battery connector
- 5 A fuse mounted on the front of the case
- LED arranged on the front to indicate battery operation
- Spare fuse holder integrated in the case
Optionally available:
-
- Connection cable XLR 4-pin to D-TAP, length: 2.5 m
- Connection cable XLR 4-pin to car plug, length: 2.5 m
- Connection cable XLR 4-pin to open cable end, length: 2.5 m
Further information and best practice for the operation of the BSS case with battery can be found under our blog entry:
“Battery operation with the ATEM Mini”
Scope of delivery
- Integrated control electronics with 4-pin XLR battery connector
- 5 A fuse mounted on the front of the case
- LED arranged on the front to indicate battery operation
- Spare fuse holder integrated in the case
Optionally available:
-
- Connection cable XLR 4-pin to D-TAP, length: 2.5m
- Connection cable XLR 4-pin to car plug, length: 2.5m
- Connection cable XLR 4-pin to open cable end, length: 2.5m
Further information and best practice for the operation of the BSS case with battery can be found under our blog entry:
“Battery operation with the ATEM Mini”
Your "MAZ" is always with you.
Integrated hard drive holders for the Extreme Case
What if your SSD hard drive was integrated into the case to record your streams? There are two mounts available for your hard drives. Easily accessible behind the foldable screen, your panels are quickly mounted there. Fits Western Digital’s SanDisk Extreme PRO® Portable SSD series or as a universal mount for a variety of disk sizes.
Both versions have a high-quality USB-C 3.1 Gen2 cable installed in the case. To ensure the maximum recording speed, one of the two USB-C outputs must be used directly for this purpose when installing the ATEM Extreme yourself (one of the two USB-C outputs on the case remains free for this).
And if your plate type ever changes, the mount can be easily and quickly replaced with just two screws.
Do you already own a case for the ATEM Extreme and would like to retrofit the hard drive mount? Depending on the series status, this is possible at a reasonable price. If necessary, just get in touch with us.
- The hard drive holder holds SanDisk Extreme Pro hard drives easily and without tools.
- Fits the popular SanDisk Extreme PRO® Portable SSD
- Tool-free fastening – simply slide in the hard drive
- Secured by two ball pressure pieces.
- The universal mount is suitable for hard drives with up to
(Width x Length x Depth) 73 x 112 x 11 mm size.- Secured with sturdy Velcro strap
- Adjustable in the base body by placing the tape in two widths / lengths
The option includes:
- 2 x M4 stainless steel threaded bushings in the monitor mount
- 1 x Matching USB-C Cable 3.1 GEN2
- 1 x hard disk mount (with Universal with pre-mounted Velcro strap (2x))
- Fastening material
- Mounting in the case
Product versions in comparison
ATEM Mini
Extreme Case Basic
The Basic Case includes all connections of the ATEM Mini Extreme Pro / ISO with audio and headphone jack in 3.5 mm jack version. All connections are routed to the outside on the back and left side of the case. The HDMI output 2 is available as a duplicate monitor signal on the back of the case.
- Optionally available: ATEM Mini Extreme Pro (ISO)
- 15-inch full HD monitor
- Integrated 6.67A power supply
- Fan - continuous operation
- 3.5mm audio jacks
- 3.5 mm - headphone jack
- HDMI output 1 on case back
- Fan - PWM thermostat controlled 9
- XLR - audio jacks
- Socket version Neutrik 10
- Optionally available: 6.35 mm - headphone jack
- Optionally available: 2 x 3G-SDI Converter 11
- Optionally available: USB-A charging socket 13
- Optionally available: Battery connection UPS function
- Optionally available: Hard drive holder
ATEM Mini
Extreme Case Professional
The audio connections of the Professional Case for ATEM Mini are designed as XLR sockets with a cable from Sommer Cable and a lockable 6.35 mm jack socket is installed as a headphone connection. In addition, connection sockets from Neutrik AG are installed. The fan speed is thermostat-controlled. The HDMI output 2 is available as a duplicate monitor signal on the back of the case.
- Optionally available: ATEM Mini Extreme Pro (ISO)
- 15-inch full HD monitor
- Integrated 6.67A power supply
- Fan - continuous operation
- 3.5mm audio jacks
- 3.5 mm - headphone jack
- HDMI output 1 on case back
- Fan - PWM thermostat controlled 9
- XLR - audio jacks
- Socket version Neutrik 10
- 6.35 mm - headphone jack
- Optionally available: 2 x or 4 x 3G-SDI Converter 11
- Optionally available: USB-A charging socket Neutrik 13
- Optionally available: Battery connection UPS function
- Optionally available: Hard drive holder
ATEM Mini
Extreme Case SDI
The audio connections of the Professional Case for ATEM Mini are designed as XLR sockets with a cable from Sommer Cable and a lockable 6.35 mm jack socket is installed as a headphone connection. In addition, connection sockets from Neutrik AG are installed. The fan speed is thermostat-controlled. The SDI output 4 is available as a duplicate monitor signal on the back of the case.
- Optionally available: ATEM Mini Extreme SDI
- 15-inch full HD monitor
- Integrated 6.67A power supply
- Fan - continuous operation
- 3.5mm audio jacks
- 3.5 mm - headphone jack
- SDI output 1 on case back
- Fan - PWM thermostat controlled 9
- XLR - audio jacks
- Socket version Neutrik 10
- 6.35 mm - headphone jack
- Optionally available: up to 4 x 3G-HDMI converters in individual design 11
- Optionally available: USB-A charging socket Neutrik 13
- Optionally available: Battery connection UPS function
- Optionally available: Hard drive holder
Bring on your ATEM Mini Extreme!
Do you have an existing ATEM Mini Pro Extreme or ATEM Mini Pro ISO Extreme?
Then you can install it yourself with a little technical understanding and manual skills. Simply select the inexpensive BSS case variant “without ATEM Mini Extreme” under “Configure now”.
In our assembly and operating instructions on the download page you will find detailed instructions for installation. There is also a step-by-step video tutorial on our assembly page. And if you are not sure about the self-installation, then contact our service in advance, we will be happy to advise you.
Our service
We develop our products with a view to high reliability and a long service life. However, always in the name of technical innovation to offer you the best possible performance. Therefore, we welcome your feedback, ideas or suggestions for improvement regarding the ATEM Mini case.
But what if you already own a case and a technical innovation was unfortunately not yet available at the time of ordering?
We design our products to be as compatible as possible for future expansions. Therefore, if necessary, contact us and we will clarify with you the possibility and costs for retrofitting or conversion.
Best streaming performance with the ATEM case Mini extremes
To help you achieve the best streaming performance with the ATEM Mini case, we’ve put together technical information and experience for you on our blog. Ultimately, the sum of all necessary parameters leads to a good overall result.
The complete overview of all posts can be found under our technology blog.
Audio cable for the BSS Professional Case
Battery operation with the ATEM Mini
SDI MicroConverter – our experience
Charging via USB socket on the ATEM Mini case
SDI cable – handling made easy
Audio inputs on the case for ATEM Mini
HDMI cable when operating with the ATEM Mini (Extreme)
All features and prices
The configuration of your Case Extreme is very easy in our shop.
You will also find all prices there.
More information - technical documentation
You can find even more information about the Case Professional in our technical documentation via the following links:
Technical details at a glance
The technical data for our individual cases can be found enclosed at a glance.
| Specifications | Parameter | Basic Case | Professional Case | Professional SDI Case |
|---|---|---|---|---|
| Monitor | Size | 15.6 inches (16:9) | 15.6 inches (16:9) | 15.6 inches (16:9) |
| Screen | LED | LED | LED | |
| Resolution | 1920x1080 (Full HD) | 1920x1080 (Full HD) | 1920x1080 (Full HD) | |
| Brightness | 250cd/m² | 250cd/m² | 250cd/m² | |
| Contrast | 700:1 | 700:1 | 700:1 | |
| Perspective | 170°/170°(H/V) | 170°/170°(H/V) | 170°/170°(H/V) | |
| Supported formats |
720p 50/60, 1080i 50/60, 1080p 50/60 |
720p 50/60, 1080i 50/60, 1080p 50/60 |
720p 50/60, 1080i 50/60, 1080p 50/60 |
|
| Case material | Plastic | Plastic | Plastic | |
| Metrics |
364×250×6,9mm (Display) 364×135×10.7mm (base) |
364×250×6,9mm (Display) 364×135×10.7mm (base) |
364×250×6,9mm (Display) 364×135×10.7mm (base) |
|
| Case Connectors | Inputs | 8 x HDMI |
8 x HDMI OPTIONAL: 6 x HDMI / 2 x 3G SDI OPTIONAL: 4 x HDMI / 4 x 3G SDI |
8 x SDI OPTIONAL: See table at SDI |
|
2 x 3.5mm jack Stereo audio input |
2 x XLR socket Stereo circuitry |
2 x XLR socket Stereo circuitry |
||
| Inputs/Outputs | Ethernet RJ45 Female | Ethernet RJ45 Female | Ethernet RJ45 Female | |
| 2 x USB-C | 2 x USB-C | 2 x USB-C | ||
| Outputs | 2x HDMI-Out; of which 1 x duplicated monitor signal | 2x HDMI-Out; of which 1 x duplicated monitor signal | 1x HDMI- & 3x SDI-Out or 4x SDI-Out; of which 1 x duplicate monitor signal (HDMI/SDI) | |
|
3.5mm stereo Headphone output OPTIONAL: 6.35mm stereo Headphone output |
6.35mm stereo Headphone output |
6.35mm stereo Headphone output |
||
| OPTIONAL: USB-A charging port | OPTIONAL: USB-A charging port | OPTIONAL: USB-A charging port | ||
|
OPTIONAL: 12V battery connection XLR 4-pin |
OPTIONAL: 12V battery connection XLR 4-pin |
OPTIONAL: 12V battery connection XLR 4-pin |
||
| Power consumption | Connected load | 230V/50Hz | 230V/50Hz | 230V/50Hz |
| Power | 12V / 6.67A / 80W | 12V / 6.67A / 80W | 12V / 6.67A / 80W | |
| Installation | Temperature range |
|
||
| Relative humidity |
|
|||
| Metrics | Size | 430x380x154mm | ||
| Weight 14 | approx. 6.42 -7.95kg | approx. 6.42 - 8.83kg | approx. 6.64 - 9.50kg | |
| Scope of delivery |
Basic Case 230V connection cable (1.80 m) with Schuko plug (CEE7/7) |
Professional Case 230V connection cable (1.80 m) with Schuko plug (CEE7/7) 2 x Adapter cable XLR - 3.5mm stereo jack (0.7m) |
SDI Case 230V connection cable (1.80 m) with Schuko plug (CEE7/7) 2 x Adapter cable XLR - 3.5mm stereo jack (0.7m) |
|
| Certificates |
|
|||
Daniel Breitenbücher
Are you looking for a solution for your live streaming?What are the requirements of the company? Or would you like to try one of our Take advantage of the services offered? We are happy to answer your questions and provide advice on customer-specific solutions for our products.
Our quality standards
It is our aim to provide our customers with only high-quality products and services in terms of quality, performance and safety. In conclusion, this means for us that you, as a customer, like to come back and not our products. Therefore, from the conception to the creation of our products, the focus is on their reliability and value.
In addition, we focus on the sustainable use of materials and resources, e.g. through the use of reprocessed, recycled materials.
Are you looking for a solution for your live streaming?What are the requirements of the company? We are happy to answer your questions and provide advice on customer-specific solutions for our products.
Our quality standards
It is our aim to provide our customers with only high-quality products and services in terms of quality, performance and safety. In conclusion, this means for us that you, as a customer, like to come back and not our products. Therefore, from the conception to the creation of our products, the focus is on their reliability and value.
In addition, we focus on the sustainable use of materials and resources, e.g. through the use of reprocessed, recycled materials.
Daniel Breitenbücher
1 ATEM Mini is a compact four-channel video mixer from the company Blackmagic Design Pty. ltd
2 The installation of the ATEM Mini (Extreme) requires technical understanding and some manual dexterity. If necessary, please contact our service before purchasing. We are happy to help.
For more information on how to install an ATEM Mini yourself, please visit our download area, – User Manual .
3 The monitor supports HDMI resolutions up to 1080p60.
4 This can be used to activate other functions of the screen.
5 For Basic / Professional Case: 8x HDMI input 1080p, 2x HDMI output, 2x USB-C as WebCam or for ISO recordings (only with ATEM Mini Extreme ISO) / For SDI Case: 8x SDI input 1080p, 3x SDI output, 1x HDMI output, 2x USB-C as WebCam or for ISO recordings.
6 Eg for integrated SDI converter in the BSS Case Professional.
7 ATEM Mini Audio Input accepts unbalanced stereo audio signals directly. The connection of balanced signal sources, such as dynamic microphones, is not easily possible and may require external signal converters (balanced to unbalanced). More information can be found in our user manual for the BSS Case for ATEM Mini on our download page or in the forum of the ATEM Mini manufacturer Blackmagic Design Pty. ltd
8 Total weight of the Basic Case starts at 6.42kg and can be up to 9.5kg depending on the equipment (SDI Case).
9 pulse width modulated speed control – whisper quiet operation.
10 All sockets in the housing are components of the company Neutrik AG , with the exception of the system-related USB-C socket.
11 HDMI-SDI Micro Converter by the company Blackmagic Design Pty. ltd
13 The effective charging current depends on the coordination between the connected devices, the battery charge status, the connection cable and other parameters and can therefore differ.
14 The weight specification includes the (optional) ATEM Mini Extreme and differs depending on the additional options. You can find an exact indication of the individual weight under the product data in our configurator .
