*Case shown with optional ATEM Mini
Case for ATEM Mini
The Mobile All-In-One Streaming Setup Case for All ATEM Mini Video Mixers from Blackmagic Design
Three in one – one handle and everything is included. ATEM Mini – Video Switcher 1, 10-inch monitor, power supply – and all this handy, compact and transportable stowed away.
All accessories for your stream
- Quick to put into operation – set it down, unfold it and switch it on. You can save yourself the wiring of the monitor with data and power connection.
- Put an end to the tangle of cables – an integrated power supply supplies all components.
- Convenient to use - all cable connections are easily accessible on two sides of the ATEM Mini case led to the outside.
- Convenient, on-off switch and fan for safe operation even in hot weather.
- Safe and stable - all components are protected in the hard shell case and installed safely for transport.
- Your existing ATEM Keep using Mini? That's why the case is also available for self-installation! 2
Available in four versions - just right for your requirements
With added features like the ‘lost’ headphone output – we’re bringing it back to you for monitoring your ATEM Mini stream!
Which case type are you?
Economy
the cheap one
For everyone who needs more than just a solid case for their ATEM Mini. Fully wired, with 10-inch full HD monitor. All ATEM connections, except for the HDMI out used for the monitor, are routed outwards on the back and left side of the case. Also optionally available with a headphone connection.
Basic
the versatile
Everything you need is included and its options can be tailored to your needs. Standard with high-quality 10.1-inch broadcast monitor and HDMI-Out e.g. for connecting a beamer. Including headphone connection for listening to your stream and optional features such as USB charging socket, ⅜” threaded socket for attachment to tripods or the battery connection.
Professional
the complete
Withstanding frequent loads – the Professional leaves nothing to be desired. The high-quality 10.1-inch broadcast monitor, HDMI-Out, NEUTRIK sockets and the thermostat-controlled, whisper-quiet fan make it a workstation. With two optionally integrated SDI converters, your professional equipment can be connected directly. Other features are the USB charging socket or the ⅜-inch mounting socket as well as the battery connection, which makes you independent of the power supply – and all of this is compactly integrated in the stable case.
Professional
for ATEM SDI
The new ATEM SDI with BNC connectors for your professional equipment – and we have the case. With high-quality 10.1-inch broadcast monitor, dual SDI-out, NEUTRIK SDI jacks and thermostatically controlled, whisper-quiet fan. And if you do need an HDMI port – with the optionally available converter, this is directly integrated. Other features include the USB charging socket or the 3/8-inch mounting socket as well as the battery connection, which makes you independent of the mains – more professional is hardly possible!

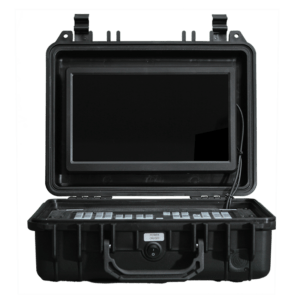

Economy
Consistently inexpensive
- Inexpensive, complete livestream setup in high quality
- Robust, stable case for safe transport
- Headphone output optionally available for listening to the stream
Everything that the ATEM Mini offers – in the same high quality of all our cases. consistently inexpensive thought and made!
Transport protection included. The sturdy case ensures safe transport and a long service life of the installed components.
The volume of the optional headphone output is controlled by the settings on the monitor.
Basic
versatile through and through
- Expandable live stream setup with first-class field monitor
- Headphone jack and monitor HDMI-Out included
- Individually configurable with further optional features
Robust metal housing, various software configuration options – the 10.1-inch monitor meets the requirements for a high-quality streaming field monitor.
The headphone output is already integrated as standard in the Basic Case and optionally even available in 6.35 mm version. In addition, the HDMI-Out signal of the ATEM not only feeds the monitor but is available on the back of the case as an output.
With optional features such as the 3/8-inch threaded insert, the USB charging port, as well as the battery connection, the case can be upgraded to suit your requirements.
Professional
high quality and complete
- High-quality components for a long service life
- Whisper-quiet operation thanks to thermostatically controlled fan
- Optional, professional features for your livestream full equipment
Components from well-known manufacturers such as sockets from Neutrik or cables from Sommer ensure a long service life even with frequent use.
The built-in fan generates a barely perceptible running noise due to its specially shaped fan blades. In addition, the speed control is adapted to the case's internal temperature.
With optional features such as the USB charging port, the integrated SDI converters or the battery connection, the case can be configured exactly to suit your requirements.
Professional SDI
more Pro is not possible
- With second SDI-Out for your own program path
- Monitor connection via SDI & Thermotsat controlled fan
- Optional, professional features for your livestream full equipment

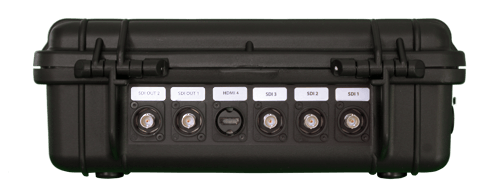

With the second SDI-Out on the back of the case, the internal monitor can be operated in the multiview view, the program can be displayed on an external monitor.
SDI through and through. The internal monitor is also controlled via SDI-Out and its duplicated signal is also attached to the SDI -Out 1 on the back of the case.
The built-in fan generates a barely perceptible running noise due to its specially shaped fan blades. In addition, the speed control is adapted to the case's internal temperature.
With optional features such as the USB charging port, an integrated HDMI converter or the battery connection, the case can be configured exactly to suit your requirements.
Click the buttons and get all the information about your case
Everything included and cheap!
Consistently inexpensive and yet everything is included. This is the best way to describe the economic case for the ATEM Mini. With the integrated FullHD monitor, it meets all the requirements of a director’s screen and your ATEM Mini is well protected in the sturdy case and ready for immediate use.
Full HD 10" monitor 3
Sitemap
Especially when things have to be done quickly – all ATEM connections Mini are easily accessible with stable sockets on two sides of the case. And more extras too!
The central on/off switch is located on the front. With the stable handle you have the case safely under control.
The connection for the optional headphone connection is ergonomically arranged and easily accessible. And even if you configure your case without this, all the necessary holes are already there. This means that it can easily be retrofitted at a later date.
All video inputs and outputs 5 are equipped with stable sockets on the back and are easily accessible. And if one of them has reached its maximum number of mating cycles in daily use, then it can be easily replaced.
Simply plug it in directly – the internal power supply provides enough power to supply all integrated components and still has reserves for optional extensions 6 . You can use the two audio inputs to include unbalanced stereo line signals 7 directly in your broadcast, and the Ethernet port provides a secure connection to the internet for your streams via cable.

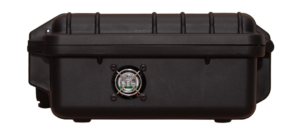

Even when it gets hot – with the integrated fan, the built-in components keep a “cool head”, which they thank you with a longer service life!
Compact & robust
Brings its transport protection with the stable hard-shell case. A robust solution instead of lugging two containers for the components or a bulky flight case. The components are safely stowed away in the BSS case for the ATEM Mini, so nothing falls out and the case is always securely closed with the two retaining clips during transport. With a total weight of only 3.7 kg 8 , it remains extremely compact and easily transportable.
Suitable for your requirements - our optional features
3.5 mm headphone jack – always at "audio height" with your stream!
Even if your ATEM Mini doesn’t come with this from home, – wwe have the solution! With the optional 3.5mm stereo headphone jack, you can listen to your stream directly and thus ensure your transmission quality. Ergonomic and easily accessible on the front arranged. The volume can be easily adjusted using the menu buttons on the monitor.
Added value for your SDI equipment
With the BSS Case Professional for the ATEM SDI, nothing stands in the way of your livestream with the professional equipment. The high-quality components of the company Neutrik ensure a long service life and with the optional HDMI port you save the cabling with external converters. In addition, the case can be upgraded to a streaming workstation with additional features such as a ⅜” slot, USB charging socket and the specially developed battery connection with UPS function. So that you can open up completely new streaming possibilities.
10.1" SDI Broadcast Monitor 3
Sitemap
Especially when things have to be done quickly – all ATEM connections Mini are easily accessible with stable sockets on two sides of the case. And more extras too!
The central on/off switch is located on the front, as well as the connection for your headphones, which is ergonomically arranged and easily accessible. With the stable handle you have the case safely under control.

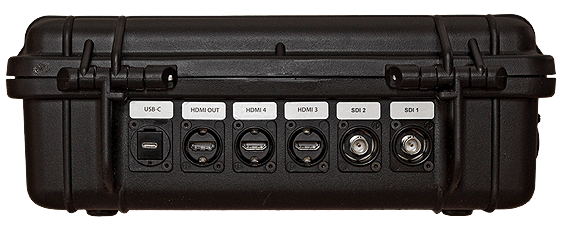

All SDI video inputs and outputs5 are easily accessible on the back with stable Neutrik sockets. And if one of them has reached its maximum number of mating cycles in daily use, then it can be easily replaced.
Simply plug it in directly – the internal power supply provides enough power to supply all integrated components and still has reserves for optional extensions 6 . You can use the two audio inputs to include unbalanced stereo line signals 7 directly in your broadcast, and the Ethernet port provides a secure connection to the internet for your streams via cable.
The USB-C port to use your ATEM as WebCAm can be found on the right side. Even when it gets hot – with the integrated fan, the built-in components keep a “cool head”, which they thank you with a longer service life! And for everyone who likes it whisper-quiet – a thermostat regulates the speed of the professional case depending on the inside temperature of the case.
Compact & robust
Brings its transport protection with the stable hard-shell case. A robust solution instead of lugging two containers for the components or a bulky flight case. In the BSS case for the ATEM SDI, the components are safely stowed away, nothing falls out and with the two retaining clips, the case is always securely closed in case of transport. With a total weight of only 3.7 kg 8 it remains extremely compact and easy to transport.
Suitable for your requirements –our optional features for your ATEM SDI
Can it be an HDMI port?
The ATEM SDI offers you direct connection options for 3G-SDI signals. But what if, for example, you want to integrate an HDMI signal from a PC into your stream? With an integrated HDMI-SDI converter we offer you the complete solution. Without annoying wiring of external components.
And to ensure a long service life, the Professional Case for ATEM SDI sockets from Neutrik AG and audio cables from Sommer Cable/Cordial are installed. In addition, the audio jacks are designed as XLR connectors. In stable metal design and with locking mechanism. This means that your microphone and data signals are contacted without interruption.
The internal control always regulates the fan speed to match the ambient temperature, so this is hardly noticeable during operation.
Turn your ATEM SDI into a workstation
The BSS-Case Professional product line includes everything you need for the daily use of your streaming setup. The stable base becomes a workstation with high-quality sockets and cables from well-known suppliers. And all this is completely integrated in the compact dimensions of the case.
HDMI connection with integrated
With the HDMI option for the Professional Case, a consumer connection for your HDMI devices is available in addition to your professional equipment. No more wiring external converters – with the HDMI option, you have a compact setup that leaves nothing to be desired for professional cameras and other accessories.
USB charging socket for sufficient power
The plus in security for your live stream. With the optional USB-A charging socket, you can charge your accessories around the case such as smartphones, tablets during live operation or supply them with the appropriate power. And that with up to 2.3 A.
In coordination with the connected devices, the intelligent charging control ensures that the correct charging current is made available to them. You can find more information about charging via the USB socket in our blog entry “Charging via USB socket”.
Secure hold for your case

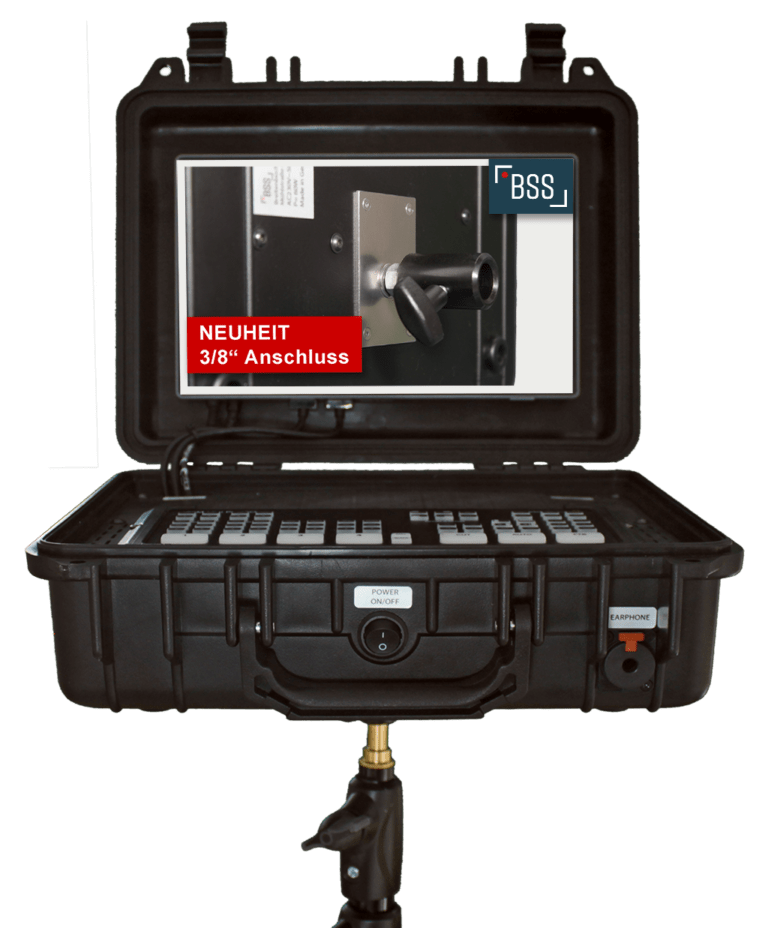

⅜ inch threaded socket
Mount the BSS case firmly and securely on conventional tripods?
No problem with our integrated 3/8 inch thread! Stable in the case and made of rust-free stainless steel, you can realize a variety of mounting options. This allows you to expand your case with multiple possible applications.
For example, by attaching it to the camera tripod, controlling the camera and live stream is significantly simplified. And with the 3/8 inch UNC thread that is common in the photo and video sector, you have a choice of different fastening systems from well-known manufacturers.
You can find some of our recommendations in the blog article .
You can find more information and all the necessary technical data in our catalog sheet.
The advantages at a glance
- Stable threaded bush with ⅜ integrated in the center of gravity Inch UNC thread.
- Retainer and threaded bush made of stainless steel
- Many attachment options with accessories on tripods, tubes, rigs and much more possible
Mounting suggestion: ⅜ inch mount with optional Manfrotto adapter on spigot tripod pin.
You can find more information and all the necessary technical data in our catalog sheet.
Battery connection with UPS function – in addition to the mains connection
What if you were as independent with your stream as you are with your camera? Our battery connector brings these freedoms to your transmission. This allows you to power your case directly from the camera battery using standard 12 V-14.4 V battery connections, e.g. from V-mount batteries. Or you use your car socket or another 12 V source. This gives you completely new possibilities to carry out your stream completely detached from the mains. And this in addition to the existing mains connection.
Battery operation with fully automatic switching
If the mains voltage fails during standard operation, the control switches fully automatically and without interruption to battery operation. The guarantor for your stream without unfortunate failures.
A control LED on the front of the case signals battery operation. And all this without manual intervention. This allows you to fully concentrate on the show.
As soon as mains voltage is available again, the system switches back just as quickly and without interruption.
And for the safety of the components, the reverse polarity-protected battery connection is equipped with a 5 A overload protection.
Plug'n'play
Simply plug it in, the on-board electronics do the rest by themselves!
V. 2.0 - Safety built in
New in version 2.0 is the battery-side integrated surge protection. If too high a low voltage such as 24V is accidentally applied, then the fuse integrated in the case housing triggers and protects your components from damage. And just in case, a suitable replacement fuse is included in the case.
Uninterruptible power supply
The uninterruptible power supply (UPS) is IC controlled and ensures safe and automatic switching between mains and battery voltage. In order to all consumers are always supplied with the necessary energy .
In order to be able to cover the special requirements for operation and technology, the electronics were specially developed for the BSS case. Just so that your stream can succeed with or without a mains connection!
Matching cable connectors
You can easily and safely connect your V-Mount or Anton Bauer batteries to the professional 4-pin, lockable XLR socket using the optional XLR to D-Tap adapter cable.
The advantages at a glance
- Mains-independent operation of the case with all connected loads (in addition to the mains connection)
- Mains priority circuit with automatic and uninterrupted switchover to battery power in the event of a mains failure or undervoltage
- 12 V – 14.4 V reverse polarity protected battery connection
- Professional, lockable 4-pin XLR plug for power supply
- Control LED for battery operation
- Additional safety due to integrated surge protection when connecting too high voltages
- 5 A fuse on the battery supply side
- Spare fuse holder integrated in the case
- Optional connection cables available
Scope of delivery
- Integrated control electronics with 4-pin XLR battery connector
- 5 A fuse mounted on the front of the case
- LED arranged on the front to indicate battery operation
- Spare fuse holder integrated in the case
Optionally available:
- Connection cable XLR 4-pin to D-TAP, length: 2.5 m
- Connection cable XLR 4-pin to car plug, length: 2.5 m
- Connection cable XLR 4-pin to open cable end, length: 2.5 m
Further information and best practice for the operation of the BSS case with battery can be found under our blog entry:
“Battery operation with the ATEM Mini”
Scope of delivery
- Integrated control electronics with 4-pin XLR battery connector
- 5 A fuse mounted on the front of the case
- LED arranged on the front to indicate battery operation
- Spare fuse holder integrated in the case
Optionally available:
- Connection cable XLR 4-pin to D-TAP, length: 2.5m
- Connection cable XLR 4-pin to car plug, length: 2.5m
- Connection cable XLR 4-pin to open cable end, length: 2.5m
Further information and best practice for the operation of the BSS case with battery can be found under our blog entry:
“Battery operation with the ATEM Mini”
The versatile one - configurable for your requirements
The BSS Basic Case for the ATEM Mini can be configured in many ways and can therefore be optimally adapted to your own streaming needs. It already has real features on board in its basic configuration. Headphone output, optionally also in 6.35mm jack version and the monitor out with which you can also duplicate your monitor signal on a large screen or beamer.
10.1" Broadcast Monitor 3
Sitemap
Especially when things have to be done quickly – all ATEM connections Mini are easily accessible with stable sockets on two sides of the case. And more extras too!
The central on/off switch is located on the front, as well as the connection for your headphones, which is ergonomically arranged and easily accessible. With the stable handle you have the case safely under control.
All video inputs and outputs 5 are equipped with stable sockets on the back and are easily accessible. And if one of them has reached its maximum number of mating cycles in daily use, then it can be easily replaced.
Simply plug it in directly – the internal power supply provides enough power to supply all integrated components and still has reserves for optional extensions 6 . You can use the two audio inputs to include unbalanced stereo line signals 7 directly in your broadcast, and the Ethernet port provides a secure connection to the internet for your streams via cable.
Even when it gets hot – with the integrated fan, the built-in components keep a “cool head”, which they thank you with a longer service life! And for everyone who likes it whisper-quiet – a thermostat regulates the speed of the professional case depending on the inside temperature of the case.
Compact & robust
Brings its transport protection with the stable hard-shell case. A robust solution instead of lugging two containers for the components or a bulky flight case. In the BSS case for the ATEM Mini, the components are safely stowed away, nothing falls out and with the two retaining clips, the case is always securely closed during transport. With a total weight of only 3.7kg 8 it remains extremely compact and easy to transport.
Suitable for your requirements - our optional features
6.35 mm headphone jack - always all ears with your professional headset!
USB charging socket for sufficient power
In coordination with the connected devices, the intelligent charging control ensures that the correct charging current is made available to them. You can find more information about charging via the USB socket in our blog entry “Charging via USB socket”.
Secure hold for your case

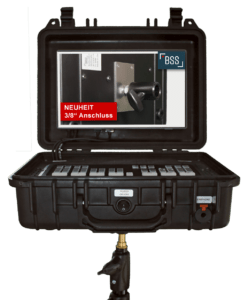

⅜ inch threaded socket
Mount the BSS case firmly and securely on conventional tripods?
No problem with our integrated 3/8 inch thread! Stable in the case and made of rust-free stainless steel, you can realize a variety of mounting options. This allows you to expand your case with multiple possible applications.
For example, by attaching it to the camera tripod, controlling the camera and live stream is significantly simplified. And with the 3/8 inch UNC thread that is common in the photo and video sector, you have a choice of different fastening systems from well-known manufacturers.
You can find some of our recommendations in the blog article .
You can find more information and all the necessary technical data in our catalog sheet.
The advantages at a glance
- Stable threaded bush with ⅜ integrated in the center of gravity Inch UNC thread.
- Retainer and threaded bush made of stainless steel
- Many attachment options with accessories on tripods, tubes, rigs and much more possible
Mounting suggestion: ⅜ inch mount with optional Manfrotto adapter on spigot tripod pin.
You can find more information and all the necessary technical data in our catalog sheet.
Battery connection with UPS function – in addition to the mains connection
What if you were as independent with your stream as you are with your camera? Our battery connector brings these freedoms to your transmission. This allows you to power your case directly from the camera battery using standard 12 V-14.4 V battery connections, e.g. from V-mount batteries. Or you use your car socket or another 12 V source. This gives you completely new possibilities to carry out your stream completely detached from the mains. And this in addition to the existing mains connection.
Battery operation with fully automatic switching
If the mains voltage fails during standard operation, the control switches fully automatically and without interruption to battery operation. The guarantor for your stream without unfortunate failures.
A control LED on the front of the case signals battery operation. And all this without manual intervention. This allows you to fully concentrate on the show.
As soon as mains voltage is available again, the system switches back just as quickly and without interruption.
And for the safety of the components, the reverse polarity-protected battery connection is equipped with a 5 A overload protection.
Plug'n'play
Simply plug it in, the on-board electronics do the rest by themselves!
V. 2.0 - Safety built in
New in version 2.0 is the battery-side integrated surge protection. If too high a low voltage such as 24V is accidentally applied, then the fuse integrated in the case housing triggers and protects your components from damage. And just in case, a suitable replacement fuse is included in the case.
Uninterruptible power supply
The uninterruptible power supply (UPS) is IC controlled and ensures safe and automatic switching between mains and battery voltage. In order to all consumers are always supplied with the necessary energy .
In order to be able to cover the special requirements for operation and technology, the electronics were specially developed for the BSS case. Just so that your stream can succeed with or without a mains connection!
Matching cable connectors
You can easily and safely connect your V-Mount or Anton Bauer batteries to the professional 4-pin, lockable XLR socket using the optional XLR to D-Tap adapter cable.
The advantages at a glance
- Mains-independent operation of the case with all connected loads (in addition to the mains connection)
- Mains priority circuit with automatic and uninterrupted switchover to battery power in the event of a mains failure or undervoltage
- 12 V – 14.4 V reverse polarity protected battery connection
- Professional, lockable 4-pin XLR plug for power supply
- Control LED for battery operation
- Additional safety due to integrated surge protection when connecting too high voltages
- 5 A fuse on the battery supply side
- Spare fuse holder integrated in the case
- Optional connection cables available
Scope of delivery
- Integrated control electronics with 4-pin XLR battery connector
- 5 A fuse mounted on the front of the case
- LED arranged on the front to indicate battery operation
- Spare fuse holder integrated in the case
Optionally available:
- Connection cable XLR 4-pin to D-TAP, length: 2.5 m
- Connection cable XLR 4-pin to car plug, length: 2.5 m
- Connection cable XLR 4-pin to open cable end, length: 2.5 m
Further information and best practice for the operation of the BSS case with battery can be found under our blog entry:
“Battery operation with the ATEM Mini”
Scope of delivery
- Integrated control electronics with 4-pin XLR battery connector
- 5 A fuse mounted on the front of the case
- LED arranged on the front to indicate battery operation
- Spare fuse holder integrated in the case
Optionally available:
- Connection cable XLR 4-pin to D-TAP, length: 2.5m
- Connection cable XLR 4-pin to car plug, length: 2.5m
- Connection cable XLR 4-pin to open cable end, length: 2.5m
Further information and best practice for the operation of the BSS case with battery can be found under our blog entry:
“Battery operation with the ATEM Mini”
Our features for PROs
With the BSS Case Professional for the ATEM Mini, nothing stands in the way of your live stream with professional equipment. The high-quality components from Neutrik ensure a long service life and with the optional SDI connection you save on wiring with external converters. In addition, the case can be upgraded to a streaming workstation with additional features such as a ⅜” slot, USB charging socket and the specially developed battery connection with UPS function. So that you can open up completely new streaming possibilities.
10.1" Broadcast Monitor 3
Sitemap
Especially when things have to be done quickly – all ATEM connections Mini are easily accessible with stable sockets on two sides of the case. And more extras too!
The central on/off switch is located on the front, as well as the connection for your headphones, which is ergonomically arranged and easily accessible. With the stable handle you have the case safely under control.
All video inputs and outputs 5 are equipped with stable sockets on the back and are easily accessible. And if one of them has reached its maximum number of mating cycles in daily use, then it can be easily replaced.
Simply plug it in directly – the internal power supply provides enough power to supply all integrated components and still has reserves for optional extensions 6 . You can use the two audio inputs to include unbalanced stereo line signals 7 directly in your broadcast, and the Ethernet port provides a secure connection to the internet for your streams via cable.
Even when it gets hot – with the integrated fan, the built-in components keep a “cool head”, which they thank you with a longer service life! And for everyone who likes it whisper-quiet – a thermostat regulates the speed of the professional case depending on the inside temperature of the case.
Compact & robust
Brings its transport protection with the stable hard-shell case. A robust solution instead of lugging two containers for the components or a bulky flight case. In the BSS case for the ATEM Mini, the components are safely stowed away, nothing falls out and with the two retaining clips, the case is always securely closed during transport. With a total weight of only 3.7kg 8 it remains extremely compact and easy to transport.
Suitable for your requirements – our optional features for your professional case
SDI included - the direct way for your professional equipment
Where streaming equipment is moved and set up frequently, it needs high-quality components to ensure a long service life. Therefore, sockets from Neutrik AG and audio cables from Sommer Cable/Cordial are also installed in the Professional Case for ATEM Mini. You can find more professional designs with the XLR connections and the Ethernet socket. In stable metal design and with locking mechanism. This means that your microphone and data signals are contacted without interruption.
The internal control always regulates the fan speed to match the ambient temperature, so this is hardly noticeable during operation.
Turn your ATEM Mini into a workstation
The BSS-Case Professional product line includes everything you need for the daily use of your streaming setup. The stable base becomes a workstation with high-quality sockets and cables from well-known suppliers.
The SDI option gives you access to the world of professional equipment. And all this is completely integrated in the compact dimensions of the case.
SDI connection also integrated
Professional SDI – With this option for the professional case, everything is ready for your professional equipment with two 3G SDI connections. No more wiring external converters – with the SDI option you have a compact setup that leaves nothing to be desired for professional cameras and accessories.
USB charging socket for sufficient power
The plus in security for your live stream. With the optional USB-A charging socket, you can charge your accessories around the case such as smartphones, tablets during live operation or supply them with the appropriate power. And that with up to 2.3 A.
In coordination with the connected devices, the intelligent charging control ensures that the correct charging current is made available to them. You can find more information about charging via the USB socket in our blog entry “Charging via USB socket”.
Secure hold for your case
⅜ inch threaded socket
Mount the BSS case firmly and securely on conventional tripods?
No problem with our integrated 3/8 inch thread! Stable in the case and made of rust-free stainless steel, you can realize a variety of mounting options. This allows you to expand your case with multiple possible applications.
For example, by attaching it to the camera tripod, controlling the camera and live stream is significantly simplified. And with the 3/8 inch UNC thread that is common in the photo and video sector, you have a choice of different fastening systems from well-known manufacturers.
You can find some of our recommendations in the blog article .
You can find more information and all the necessary technical data in our catalog sheet.
The advantages at a glance
- Stable threaded bush with ⅜ integrated in the center of gravity Inch UNC thread.
- Retainer and threaded bush made of stainless steel
- Many attachment options with accessories on tripods, tubes, rigs and much more possible
Mounting suggestion: ⅜ inch mount with optional Manfrotto adapter on spigot tripod pin.
You can find more information and all the necessary technical data in our catalog sheet.
Battery connection with UPS function – in addition to the mains connection
What if you were as independent with your stream as you are with your camera? Our battery connector brings these freedoms to your transmission. This allows you to power your case directly from the camera battery using standard 12 V-14.4 V battery connections, e.g. from V-mount batteries. Or you use your car socket or another 12 V source. This gives you completely new possibilities to carry out your stream completely detached from the mains. And this in addition to the existing mains connection.
Battery operation with fully automatic switching
If the mains voltage fails during standard operation, the control switches fully automatically and without interruption to battery operation. The guarantor for your stream without unfortunate failures.
A control LED on the front of the case signals battery operation. And all this without manual intervention. This allows you to fully concentrate on the show.
As soon as mains voltage is available again, the system switches back just as quickly and without interruption.
And for the safety of the components, the reverse polarity-protected battery connection is equipped with a 5 A overload protection.
Plug'n'play
Simply plug it in, the on-board electronics do the rest by themselves!
V. 2.0 - Safety built in
New in version 2.0 is the battery-side integrated surge protection. If too high a low voltage such as 24V is accidentally applied, then the fuse integrated in the case housing triggers and protects your components from damage. And just in case, a suitable replacement fuse is included in the case.
Uninterruptible power supply
The uninterruptible power supply (UPS) is IC controlled and ensures safe and automatic switching between mains and battery voltage. In order to all consumers are always supplied with the necessary energy .
In order to be able to cover the special requirements for operation and technology, the electronics were specially developed for the BSS case. Just so that your stream can succeed with or without a mains connection!
Matching cable connectors
You can easily and safely connect your V-Mount or Anton Bauer batteries to the professional 4-pin, lockable XLR socket using the optional XLR to D-Tap adapter cable.
The advantages at a glance
- Mains-independent operation of the case with all connected loads (in addition to the mains connection)
- Mains priority circuit with automatic and uninterrupted switchover to battery power in the event of a mains failure or undervoltage
- 12 V – 14.4 V reverse polarity protected battery connection
- Professional, lockable 4-pin XLR plug for power supply
- Control LED for battery operation
- Additional safety due to integrated surge protection when connecting too high voltages
- 5 A fuse on the battery supply side
- Spare fuse holder integrated in the case
- Optional connection cables available
Scope of delivery
- Integrated control electronics with 4-pin XLR battery connector
- 5 A fuse mounted on the front of the case
- LED arranged on the front to indicate battery operation
- Spare fuse holder integrated in the case
Optionally available:
- Connection cable XLR 4-pin to D-TAP, length: 2.5 m
- Connection cable XLR 4-pin to car plug, length: 2.5 m
- Connection cable XLR 4-pin to open cable end, length: 2.5 m
Further information and best practice for the operation of the BSS case with battery can be found under our blog entry:
“Battery operation with the ATEM Mini”
Scope of delivery
- Integrated control electronics with 4-pin XLR battery connector
- 5 A fuse mounted on the front of the case
- LED arranged on the front to indicate battery operation
- Spare fuse holder integrated in the case
Optionally available:
- Connection cable XLR 4-pin to D-TAP, length: 2.5m
- Connection cable XLR 4-pin to car plug, length: 2.5m
- Connection cable XLR 4-pin to open cable end, length: 2.5m
Further information and best practice for the operation of the BSS case with battery can be found under our blog entry:
“Battery operation with the ATEM Mini”
All product versions in comparison
Have you already looked at all the information and product features of the individual cases? Then you will find an overview of all case variants with their optional features here.
ATEM Mini Case
Economy
The Economic Case includes all connections of the ATEM Mini Pro / ISO. All connections, except for the HDMI out used for the monitor, are routed to the outside on the back and left side of the case.
- Optionally available: ATEM Mini Pro (ISO)
- 10" full HD monitor
- Integrated power supply 5A
- Fan - continuous operation
- 3.5 mm audio jacks
- Optionally available: 3.5 mm headphone jack
- Fan - PWM thermostat controlled 9
- XLR - audio jacks
- Socket version Neutrik 10
- Optionally available: 6.35 mm headphone jack
- Optionally available: 2 x 3G-SDI Converter 11 12
- Optionally available: USB-A charging socket 13
- Optionally available: ⅜" threaded bush 14
- Optionally available: 12V battery connection
ATEM Mini
Case Basic
The basic case includes all connections of the ATEM Mini Pro / ISO with audio and headphone connection in 3.5 mm jack version. All connections are routed to the outside on the back and left side of the case.
- Optionally available: ATEM Mini Pro (ISO)
- 10.1" Broadcast Monitor
- Integrated power supply 5A
- Fan - continuous operation
- 3.5 mm audio jacks
- 3.5 mm headphone jack
- Fan - PWM thermostat controlled 9
- XLR - audio jacks
- Socket version Neutrik 10
- Optionally available: 6.35 mm headphone jack
- Optionally available: 2 x 3G-SDI Converter 11 12
- Optionally available: USB-A charging socket 13
- Optionally available: ⅜" threaded bush 14
- Optionally available: 12V battery connection
ATEM Mini Case Professional
In the Professional Case for ATEM Mini, the audio connections are designed as XLR sockets with cable from Sommer Cable and a lockable 6.35mm jack socket is installed as a headphone jack. In addition, connection sockets from Neutrik AG are installed. The fan speed is thermostat-controlled.
- Optionally available: ATEM Mini Pro (ISO)
- 10.1" Broadcast Monitor
- Integrated power supply 5A
- Fan - continuous operation
- 3.5 mm audio jacks
- 3.5 mm headphone jack
- Fan - PWM thermostat controlled 9
- XLR - audio jacks
- Socket version Neutrik 10
- 6.35 mm - headphone jack
- Optionally available: 2 x 3G-SDI converter 11 12
- Optionally available: USB-A charging socket Neutrik 13
- Optionally available: ⅜" threaded bush 14
- Optionally available: 12V battery connection
ATEM SDI Case Professional
In the Professional SDI Case for ATEM Mini, the audio connections are designed as XLR sockets with cable from Sommer Cable and a lockable 6.35 mm jack socket is installed as a headphone jack. In addition, SDI connection sockets from Neutrik AG are installed. The fan speed is thermostat-controlled.
- Optionally available: ATEM Mini Pro (ISO)
- 10.1" Broadcast Monitor
- Integrated power supply 5A
- Fan - continuous operation
- 3.5 mm audio jacks
- 3.5 mm headphone jack
- Fan - PWM thermostat controlled 9
- XLR - audio jacks
- Socket version Neutrik 10
- 6.35 mm - headphone jack
- Optionally available: 1 x HDMI Converter 11 12
- Optionally available: USB-A charging socket Neutrik 13
- Optionally available: ⅜" threaded bush 14
- Optionally available: 12V battery connection
Bring in your ATEM Mini!
Do you have an existing ATEM Mini Pro or ATEM Mini Pro ISO?
Then you can install it yourself with a little technical understanding and manual skills. Simply select the inexpensive BSS case variant “without ATEM Mini” under “Configure now”.
In our assembly and operating instructions on the download page you will find detailed instructions for installation. There is also a step-by-step video tutorial on our assembly page. And if you are not sure about the self-installation, then contact our service in advance, we will be happy to advise you.
Our service
We develop our products with a view to high reliability and a long service life. However, always in the name of technical innovation to offer you the best possible performance. Therefore, we welcome your feedback, ideas or suggestions for improvement regarding the ATEM Mini case.
But what if you already own a case and a technical innovation was unfortunately not yet available at the time of ordering?
We design our products to be as compatible as possible for future expansions. Therefore, if necessary, contact us and we will clarify with you the possibility and costs for retrofitting or conversion.
Best streaming performance with the case for ATEM Mini
To help you achieve the best streaming performance with the ATEM Mini case, we’ve put together technical information and experience for you on our blog. Ultimately, the sum of all necessary parameters leads to a good overall result.
The complete overview of all posts can be found under our technology blog.
Audio cable for the BSS Professional Case
With the Professional Case, we install XLR sockets in the audio inputs for the sake of higher contact security. However, since the ATEM Mini has …
Battery operation with the ATEM Mini
First of all: The “battery connection” does not replace the mains connection in the BSS case but is optional to accessible. V-mount batteries with dual …
Individual mounting options with ⅜ Inch threaded bush
The ⅜ inch (abbreviation for inch =(“)) threaded bushing in the BSS case opens up many new mounting options that can be of great use …
SDI MicroConverter – our experience
The Blackmagicdesign (BMD) website has a number of different SDI converters in its range, which differ significantly in terms of their features and performance. Those …
Charging via USB socket on the ATEM Mini case
USB sockets – look similar, but they are not! Charging via the USB socket has been working since “USB primeval times”. However, at the beginning …
SDI cable – handling made easy
With the high packing density of the SDI cables, it can happen that a fixed throw-over metal ring on the BNC connector can hardly be …
HDMI – Input sensitivity on the ATEM Mini
With its four HDMI inputs, the ATEM Mini offers enough space for small or medium-sized live streams and recordings up to a resolution of 1080p60. …
Audio inputs on the case for ATEM Mini
Depending on the version, the BSS Case for ATEM Mini contains two audio inputs, which are designed either as 3.5 mm stereo jack sockets (Basic) …
HDMI cable when operating with the ATEM Mini (Extreme)
Since the introduction of this standard , HDMI cables have been available in different versions, currently up to version 2.1. These differ technically, among other …
All features and prices
The configuration of your case is very easy in our shop.
You will also find all prices there.
More information - technical documentation
You can find even more information about our cases in our technical documentation via the following links:
Technical details at a glance
The technical data for our individual cases can be found enclosed at a glance.
| Specifications | Parameter | Economic Case | Basic Case | Professional Case | Professional SDI |
|---|---|---|---|---|---|
| Monitor | Size | 10.0" inch (16:9) | 10.1" inch (16:10) | 10.1" inch (16:10) | 10.1" inch (16:10) |
| Screen | IPS | IPS | IPS | IPS | |
| Resolution | 1920x1080 (Full HD) | 1920x1200 (WUXGA) | 1920x1200 (WUXGA) | 1920x1200 (WUXGA) | |
| Brightness | 500cd/m² | 320cd/m² | 320cd/m² | 320cd/m² | |
| Contrast | 1000:1 | 1000:1 | 1000:1 | 1000:1 | |
| Perspective | 170°/170°(H/V) | 175°/175°(H/V) | 175°/175°(H/V) | 175°/175°(H/V) | |
| Supported formats |
1080p 24/25/30/50/60 |
720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 |
720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 |
720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30 | |
| Monitor connector | HDMI | HDMI | HDMI | SDI | |
| Case material | Plastic | Metal | Metal | Metal | |
| Case Connectors | Inputs | 4 x HDMI | 4 x HDMI |
4 x HDMI OPTIONAL: 2 x HDMI / 2 x 3G SDI |
4 x SDI OPTIONAL: 3 xSDI / 1 x HDMI |
|
2 x 3.5 mm jack Stereo audio input |
2 x 3.5 mm jack Stereo audio input |
2 x XLR socket Stereo circuitry |
2 x XLR socket Stereo circuitry | ||
| Inputs/Outputs | Ethernet RJ45 Female | Ethernet RJ45 Female | Ethernet RJ45 Female | Ethernet RJ45 Female | |
| USB-C | USB-C | USB-C | USB-C | ||
| Outputs | – | HDMI-Out | HDMI-Out | 2x SDI-Out | |
|
OPTIONAL: 3.5 mm stereo Headphone output |
3.5 mm stereo Headphone output OPTIONAL: 6.35 mm stereo Headphone output |
6.35 mm stereo Headphone output |
6.35 mm stereo Headphone output | ||
| – | OPTIONAL: USB-A charging port | OPTIONAL: USB-A charging port | OPTIONAL: USB-A charging port | ||
| – |
OPTIONAL: 12V battery connection XLR 4-pin |
OPTIONAL: 12V battery connection XLR 4-pin |
OPTIONAL: 12V battery connection XLR 4-pin | ||
| Power consumption | Connected load |
| |||
| Power |
| ||||
| Installation | Temperature range |
| |||
| Relative humidity |
| ||||
| Metrics | Size | 330 x 280 x 120 mm | |||
| Weight 14 | approx. 3,4 kg | approx. 3,6 - 4,0 kg | approx. 3,8 - 4,7 kg | approx. 3,8 - 4,8 kg | |
| Scope of delivery |
Economic Case 230 V connection cable (1.80 m) with Schuko plug (CEE7/7) |
Basic Case 230 V connection cable (1.80 m) with Schuko plug (CEE7/7) |
Professional Case 230 V connection cable (1.80 m) with Schuko plug (CEE7/7) 2 x Adapter cable XLR - 3.5 mm Stereo jack (0.7 m) |
Professional Case SDI 230 V connection cable (1.80 m) with Schuko plug (CEE7/7) 2 x Adapter cable XLR - 3.5 mm Stereo jack (0.7 m) | |
| Conformance |
| ||||
Configure your BSS case
In the next step, you can configure the BSS case for the ATEM Mini according to your requirements and determine the price.
Configure your BSS Case Economic for ATEM Mini
648,00€ – 1.226,90€Configure your BSS Case Basic for ATEM Mini
898,00€ – 1.811,70€Configure your BSS Case Professional for ATEM Mini
1.159,00€ – 2.265,80€Configure your BSS Professional for ATEM SDI
1.199,00€ – 2.585,80€
